CSK Phillips Self Drill Screws: Streamlined Installation and Smooth Finish
Kanak Sales Corporation introduces the CSK Phillips Self Drill Screws, combining effortless installation with a sleek, countersunk appearance. These screws are expertly designed for projects where speed and aesthetics are paramount, making them essential for both professional and DIY users.
Common Uses
Wardrobe Sliding Channels
Hinges
Drawer Channels
Furniture Handles
Packing Specification
| Size | Length | Drill Point (m/m) | Drill Capacity (m/m) | |
|---|---|---|---|---|
| (inch) | (mm) | |||
| #6-20 M3.5 | 3/8″ | 10 | #2 | 0.5 – 1.0 |
| 1/2″ | 13 | #2 | 0.5 – 1.0 | |
| 5/8″ | 16 | #2 | 0.5 – 1.0 | |
| 3/4″ | 19 | #2 | 0.5 – 1.0 | |
| #8-18 M4.2 | 1″ | 25 | #2 | 0.5 – 1.0 |
| 1/2″ | 13 | #2 | 1.0 – 2.0 | |
| 5/8″ | 16 | #2 | 1.0 – 2.0 | |
| 3/4″ | 19 | #2 | 1.0 – 2.0 | |
| #10-16 M4.8 | 1″ | 25 | #2 | 1.0 – 2.0 |
| 1/2″ | 13 | #2 | 1.0 – 2.0 | |
| 5/8″ | 16 | #2 | 1.0 – 2.0 | |
| 3/4″ | 19 | #2 | 1.0 – 2.0 | |
| 1″ | 25 | #3 | 1.0 – 3.0 | |
| 1-1/4″ | 32 | #3 | 1.0 – 3.0 | |
| 1-1/2″ | 38 | #3 | 1.0 – 3.0 | |
Outstanding Features of Our CSK Phillips Self Drill Screws
Self-Drilling Technology
Each screw features a sharp, self-drilling tip that allows it to penetrate metal without the need for a pilot hole. This feature significantly reduces installation time and effort, streamlining project completion.

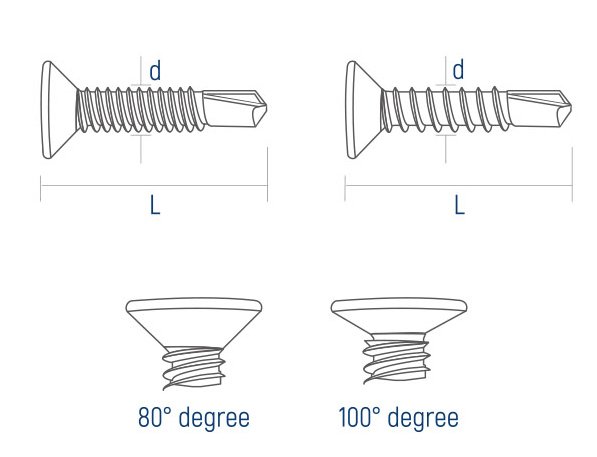

Countersunk Head
The CSK (Countersunk) head is engineered to sit flush with the surface of the material, providing a smooth, clean finish. This is ideal for applications where the visual impact of the fastening is important, such as in cabinetry, metal roofing, or decorative trim.
Phillips Drive System
The Phillips drive offers a reliable and effective means of driving the screw, with reduced cam out compared to other drive types. This ensures ease of installation and maintains the integrity of the screw head, even under torque.
Durable Material
Constructed from high-quality steel and available with various coatings for added corrosion resistance, our CSK Phillips Self Drill Screws are built to last, ensuring durability across a variety of environments.
Applications
These screws are particularly suited for attaching metal sheets to wood or metal framework, installing siding, roofing, or other scenarios where metal needs to be fastened quickly and cleanly.
