HEX Head Flange Bolt and Screw: Ultimate Strength and Efficiency
Introducing the HEX Head Flange Bolt and Screw from Kanak Sales Corporation — engineered for robustness and ease of use in demanding applications. These fasteners combine the reliability of a traditional bolt with the added stability of an integrated flange, eliminating the need for a separate washer.
Common Uses
Automotive Industry
Construction and Heavy Machinery
Electrical Installations
Marine Applications
Packing Specification

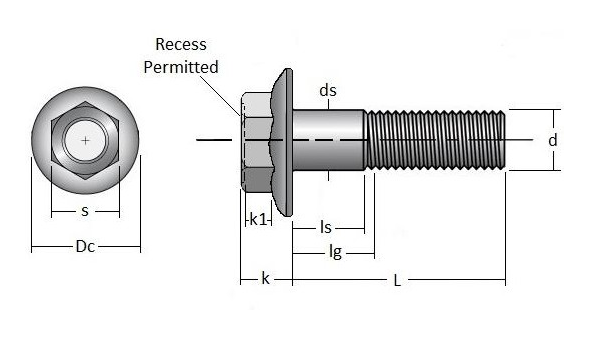

| d | s | Dc Max. |
ds | k | |||
|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | Max. | Min. | ||
| M5 | 7.78 | 8 | 11.8 | 4.82 | 5 | 5.4 | 2.0 |
| M6 | 9.78 | 10 | 14.2 | 5.82 | 6 | 6.6 | 2.5 |
| M8 | 12.73 | 13 | 18.0 | 7.78 | 8 | 8.1 | 3.2 |
| M10 | 14.73 | 15 | 22.3 | 9.78 | 10 | 9.2 | 3.6 |
| M12 | 15.73 | 16 | 26.6 | 11.73 | 12 | 11.5 | 4.6 |
| M14 | 17.73 | 18 | 30.5 | 13.73 | 14 | 12.8 | 5.1 |
| M16 | 20.67 | 21 | 35.0 | 15.73 | 16 | 14.4 | 5.8 |
| M20 | 26.67 | 27 | 43.0 | 19.67 | 20 | 17.1 | 6.8 |
| Thread (d) | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I | Is | Ig | Is | Ig | Is | Ig | Is | Ig | Is | Ig | Is | Ig | Is | Ig | Is | Ig | |||
| Nom | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 10 | 9.71 | 10.29 | – | 2.4 | |||||||||||||||
| 12 | 11.65 | 12.35 | – | 2.4 | – | 3 | |||||||||||||
| 16 | 15.65 | 16.35 | – | 2.4 | – | 3 | – | 4 | |||||||||||
| 20 | 19.58 | 20.42 | – | 4.0 | – | 3 | – | 4 | – | 4.5 | |||||||||
| 25 | 24.58 | 25.42 | 5 | 9.0 | 2 | 7 | – | 4 | – | 4.5 | – | 5.3 | |||||||
| 30 | 29.58 | 30.42 | 10 | 14.0 | 7 | 12 | – | 8 | – | 4.5 | – | 5.3 | – | 6 | |||||
| 35 | 34.50 | 35.50 | 15 | 19.0 | 12 | 17 | 6.75 | 13 | – | 9.00 | – | 5.3 | – | 6 | – | 6 | |||
| 40 | 39.50 | 40.50 | 20 | 24.0 | 17 | 22 | 11.75 | 18 | 6.5 | 14.0 | – | 10.0 | – | 6 | – | 6 | – | 7.5 | |
| 45 | 44.50 | 45.50 | 25 | 29.0 | 22 | 27 | 16.75 | 23 | 11.5 | 19.0 | 6.25 | 15.0 | – | 11 | – | 6 | – | 7.5 | |
| 50 | 49.50 | 50.50 | 30 | 34.0 | 27 | 32 | 21.75 | 28 | 16.5 | 24.0 | 11.25 | 20.0 | 6 | 16 | – | 12 | – | 7.5 | |
| 55 | 54.40 | 55.60 | 32 | 37 | 26.75 | 33 | 21.5 | 29.0 | 16.25 | 25.0 | 11 | 21 | 7 | 17 | – | 9.0 | |||
| 60 | 59.40 | 60.60 | 37 | 42 | 31.75 | 38 | 26.5 | 34.0 | 21.25 | 30.0 | 16 | 26 | 12 | 22 | – | 14.0 | |||
| 65 | 64.40 | 65.60 | 36.75 | 43 | 31.5 | 39.0 | 26.25 | 35.0 | 21 | 31 | 17 | 27 | 6.5 | 19.0 | |||||
| 70 | 69.40 | 70.60 | 41.75 | 48 | 36.5 | 44.0 | 31.25 | 40.0 | 26 | 36 | 22 | 32 | 11.5 | 24.0 | |||||
| 80 | 79.40 | 80.60 | 51.75 | 58 | 46.5 | 54.0 | 41.25 | 50.0 | 36 | 46 | 32 | 42 | 21.5 | 34.0 | |||||
| 90 | 89.30 | 90.70 | 56.5 | 64.0 | 51.25 | 60.0 | 46 | 56 | 42 | 52 | 31.5 | 44.0 | |||||||
| 100 | 99.30 | 100.70 | 66.5 | 74.0 | 61.25 | 70.0 | 56 | 66 | 52 | 62 | 41.5 | 54.0 | |||||||
| 110 | 109.30 | 110.70 | 71.25 | 80.0 | 66 | 76 | 62 | 72 | 51.5 | 64.0 | |||||||||
| 120 | 119.30 | 120.70 | 81.25 | 90.0 | 76 | 86 | 72 | 82 | 61.5 | 74.0 | |||||||||
| 130 | 129.20 | 130.80 | 80 | 90 | 76 | 86 | 65.5 | 78.0 | |||||||||||
| 140 | 139.20 | 140.80 | 90 | 100 | 86 | 96 | 75.5 | 88.0 | |||||||||||
| 150 | 149.20 | 150.80 | 96 | 106 | 85.5 | 98.0 | |||||||||||||
| 160 | 159.20 | 160.80 | 106 | 116 | 95.5 | 108.0 | |||||||||||||
| 180 | 179.20 | 180.80 | 115.5 | 128.0 | |||||||||||||||
| 200 | 199.00 | 201.00 | 135.5 | 148.0 | |||||||||||||||
Superior Features of Our HEX Head Flange Bolts and Screws
Integrated Flange Design
The built-in flange offers a wider bearing surface which distributes the load evenly over a larger area, enhancing the fastening strength and providing better holding power. This design also helps to protect the mating surfaces from damage during tightening.
High-Torque Capability
The HEX head allows for a higher torque to be applied, making these bolts and screws ideal for heavy-duty applications where robust tightening is necessary.
Versatility and Durability
Made from high-quality materials, our HEX Head Flange Bolts and Screws are built to last. They are suitable for use in a variety of industries, including automotive, construction, and machinery, where they can handle both high-stress and high-vibration environments.
Ease of Installation
The unique design simplifies assembly processes by reducing the number of parts needed. The flange acts as a non-spinning washer, which prevents the bolt from turning while the nut is being tightened, streamlining installation and maintenance.
Applications
Perfect for projects requiring a strong, secure connection, our HEX Head Flange Bolts and Screws are extensively used in automotive assemblies, structural steel joints, and equipment manufacturing. They provide critical performance in any setting that demands strong joint integrity.
Customization to Meet Your Needs
Kanak Sales Corporation understands the importance of specificity in fasteners. We offer these bolts and screws in various sizes, lengths, and materials, including carbon steel and stainless steel, to suit different applications and environments. Custom finishes are also available to enhance corrosion resistance and match the aesthetics of your projects.
