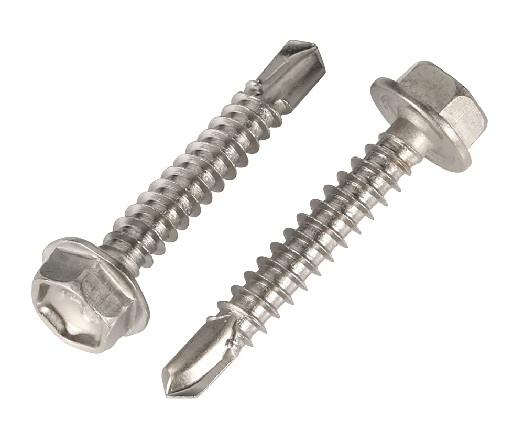

HEX Head Self Drill Screws: The Ultimate in Convenience and Performance
Kanak Sales Corporation proudly offers HEX Head Self Drill Screws, engineered for efficiency and durability. These screws are designed to simplify your work by eliminating the need for pre-drilling, making them a favorite among professionals in the construction and manufacturing industries.
Common Uses
Steel Framing
Metal Roofing & Siding
Structural Steel Applications
Mounting Components
Packing Specification

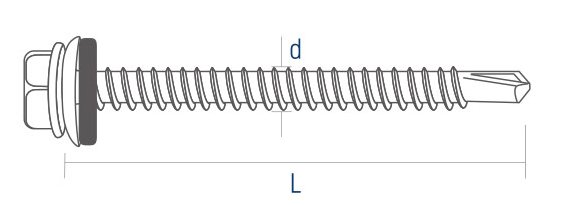

| Size | Length | Drill Point [m/m] | Drill Capacity [m/m] | |
|---|---|---|---|---|
| (inch) | (mm) | |||
| #12-14 M5.5 | 3/4″ | 19 | #3 | 2.0 – 4.0 |
| 1″ | 25 | #3 | 2.0 – 4.0 | |
| 1-1/4″ | 32 | #3 | 2.0 – 4.0 | |
| 1-1/2″ | 38 | #3 | 2.0 – 4.0 | |
| 2″ | 50 | #3 | 2.0 – 4.0 | |
| 2-1/2″ | 63 | #3 | 2.0 – 4.0 | |
| #14-14 M6.3 | 3″ | 75 | #3 | 2.0 – 4.0 |
| 3/4″ | 19 | #3 | 2.0 – 4.0 | |
| 1″ | 25 | #3 | 2.0 – 4.0 | |
| 1-1/4″ | 32 | #3 | 2.0 – 4.0 | |
| 1-1/2″ | 38 | #3 | 2.0 – 4.0 | |
| 2″ | 50 | #3 | 2.0 – 4.0 | |
| 2-1/2″ | 63 | #3 | 2.0 – 4.0 | |
| 3″ | 75 | #3 | 2.0 – 4.0 | |
| 4″ | 100 | #3 | 2.0 – 4.0 | |
| 5″ | 125 | #3 | 2.0 – 4.0 | |
| 3 x 13 | 3 x 16 | 3 x 19 |
| 3 x 25 | 4 x 6.5 | 4 x 9.5 |
| 4 x 13 | 4 x 16 | 4 x 19 |
| 5 x 13 | 5 x 16 | 6 x 6.5 |
| 6 x 9.5 |
| 6 x 13 |
| 5 x 19 | 8 x 19.5 | 8 x 13 |
| 4 x 25 | 6 x 16 |
| 5 x 25 | 6 x 19 | 6 x 25 |
| 7 x 19 | 8 x 16 | 8 x 19 |
| 10 x 13 | 10 x 16 | 10 x 19 |
| 4 x 32 | 4 x 38 | 7 x 25 |
| 8 x 25 |
| 6 x 32 | 7 x 30 | 8 x 32 |
| 6 x 38 | 6 x 45 | 6 x 50 |
| 6 x 60 | 6 x 75 | 7 x 35 |
| 8 x 35 | 8 x 38 | 9 x 25 |
| 9 x 32 | 9 x 35 | 10 x 25 |
| 10 x 32 | 10 x 35 | 10 x 38 |
| 12 x 19 | 12 x 25 | 12 x 32 |
| 8 x 45 | 8 x 50 | 8 x 60 |
| 8 x 75 | 8 x 100 | 10 x 45 |
| 10 x 50 | 10 x 60 | 10 x 75 |
| 10 x 100 | 12 x 38 | 12 x 50 |
| 12 x 60 | 12 x 75 | 14 x 19 |
| 14 x 19 | 14 x 25 | 14 x 32 |
| 12 x 100 | 12 x 125 | 12 x 150 |
| 14 x 100 | 14 x 125 | 14 x 150 |
Available Products
HEX Head 304
HEX Head 316
HEX Head 410
Key Features of Our HEX Head Self Drill Screws
Self-Drilling Tip
Equipped with a sharp, self-drilling tip, these screws allow you to drill and fasten in one go. This feature saves time and effort by reducing the number of steps required for installation.
Robust HEX Head
The HEX head design provides a high-torque capability, making it easier to drive the screw with increased leverage and stability. This is especially beneficial when working with tough materials.
Durable Material
Made from high-quality steel and available with various coatings, our HEX Head Self Drill Screws are built to resist corrosion and wear. They are ideal for both indoor and outdoor applications, providing reliable performance in any environment.
Versatile Applications
These screws are perfect for fastening metal to metal, such as attaching sheets to purlins or frames in roofing and siding applications. They are also suitable for other heavy-duty tasks where strength and speed are crucial.
