PAN Phillips Self Drill Screws: Efficiency and Strength Combined
Elevate your fastening solutions with the PAN Phillips Self Drill Screws available at Kanak Sales Corporation. These screws are crafted to provide maximum efficiency and reliability for a wide range of applications. Our self-drilling screws are designed to streamline your projects by reducing the time and effort needed for pre-drilling.
Common Uses
Construction & Roofing
Automotive Industry
Electrical Installations
Solar Panel Installations
Packing Specification

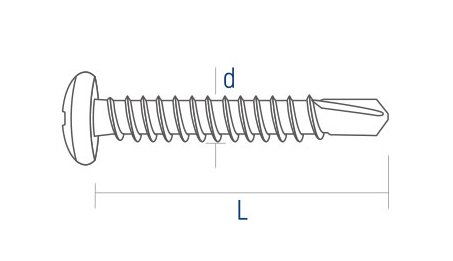

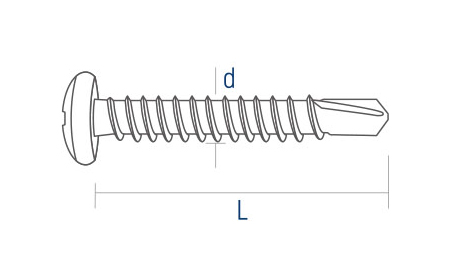

| Size | Length | Drill Point [m/m] | Drill Capacity [m/m] | |
|---|---|---|---|---|
| (inch) | (mm) | |||
| #6-20 M3.5 | 3/8″ | 10 | #2 | 0.5 – 1.0 |
| 1/2″ | 13 | #2 | 0.5 – 1.0 | |
| 5/8″ | 16 | #2 | 0.5 – 1.0 | |
| #8-18 M4.2 | 1/2″ | 13 | #2 | 1.0 – 2.0 |
| 5/8″ | 16 | #2 | 1.0 – 2.0 | |
| 3/4″ | 19 | #2 | 1.0 – 2.0 | |
| 1″ | 25 | #2 | 1.0 – 2.0 | |
| 1-1/4″ | 32 | #2 | 1.0 – 2.0 | |
| 1-1/2″ | 38 | #2 | 1.0 – 2.0 | |
| #10-16 M4.8 | 1/2″ | 13 | #2 | 1.0 – 2.0 |
| 5/8″ | 16 | #2 | 1.0 – 2.0 | |
| 3/4″ | 19 | #2 | 1.0 – 2.0 | |
| 1″ | 25 | #3 | 1.0 – 3.0 | |
| 1-1/4″ | 32 | #3 | 1.0 – 3.0 | |
| 1-1/2″ | 38 | #3 | 1.0 – 3.0 | |
| 2″ | 50 | #3 | 1.0 – 3.0 | |
Outstanding Features of Our PAN Phillips Self Drill Screws
Self-Drilling Design
Equipped with a sharp, cutting tip, these screws eliminate the need for a pilot hole, speeding up installation processes significantly. This self-drilling feature allows for quick penetration into metal, wood, and other materials without splitting or damaging the substrate.
Durable Construction
Made from high-quality materials, our PAN Phillips Self Drill Screws are built to last. They are highly resistant to corrosion and can withstand harsh environments, ensuring long-term performance and reliability.
Versatile Applications
The PAN head combined with a Phillips drive offers a practical design that sits flush with the surface, providing a clean, neat finish. Ideal for use in metal construction, HVAC installations, and building frames, these screws ensure a secure and durable hold.
Increased Torque Control
The Phillips drive reduces cam-out and allows for better torque control during installation, enhancing efficiency and safety.
Customizable Options:
At Kanak Sales Corporation, we are committed to meeting your specific project needs. Our PAN Phillips Self Drill Screws are available in various sizes, lengths, and finishes to perfectly match the demands of your applications. Whether you require stainless steel for outdoor use or coated screws for extra durability, we can provide the perfect solution.
